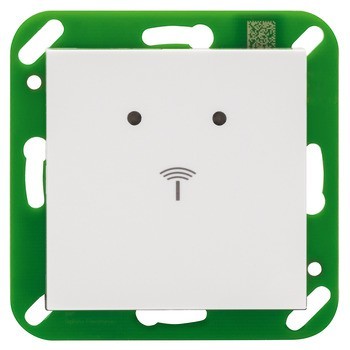

1 nástěnný terminál
Barva/povrchová úprava | Bílá |
---|---|
Relativní vlhkost | 10 – 95 % not condensed |

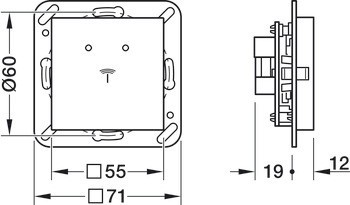

Rozměry (Š x V x H) | 55 x 55 x 12 mm |
Okolní teplota | -25 – 70 °C |
Vlastnosti | modern design with LED display|contactless opening of the access point with RFID transponder or with a mobile terminal device via low power wireless technology|Operating modes: Dialock software 2.0, Häfele My Dialock Manager app, stand-alone|Integration into the Dialock system landscape|Offline functionality|Wireless online functionality with appropriate infrastructure|Tamper protection provided by integrated sensor|visual and acoustic signalling |
Pro řízení | Ovládání zdvihu|Bariéry parkovacích míst|Vrata |
Přenosová technologie | RFID (13.56 MHz) / compatible with ISO 14443, ISO 15693|Bluetooth (2400-2483.5 MHz) |
RFID technology | MIFARE Classic EV1|MIFARE DESFire EV1 / EV2|Tag-it™ Iso |
Low power wireless technology | Bluetooth Low Energy|Thread |
Configuration and administration | Stand-alone|Häfele My Dialock Manager app|Dialock software 2.0 |
Design | External switch (System 55) |
Power supply voltage | 12–24 V DC (±15 %) |
Rozhraní | RS-485 |
Output | 1 relay output port|1 alarm output |
Input | 1 switching input/pushbutton input |
Rozsah použití | Indoor use |
Mounting version | Montáž v rovině |
